Variant 4000kg Aluminium Ramp Pair 90056T

VAR/90056T

$1,708.00 inc GST

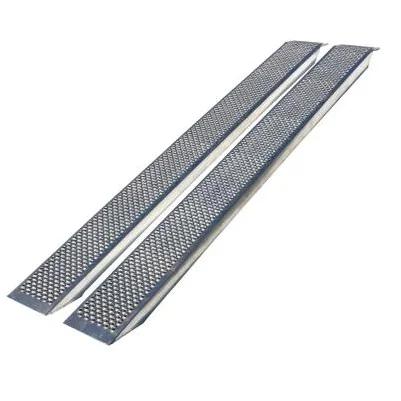

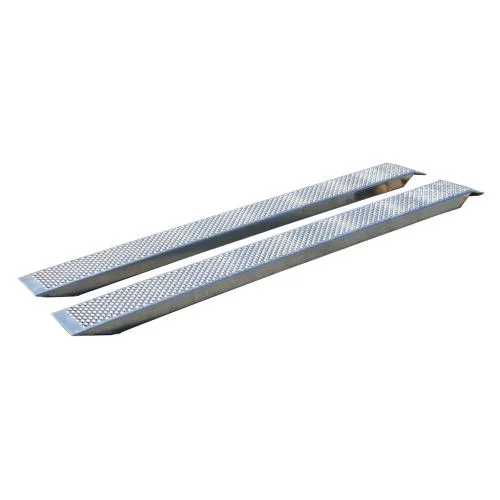

Verzion 4000kg Aluminium safety Ramps 90056T

4000kg Ramp pair (2500mm x 260mm)

Suitable for machinery, vehicles and equipment

Load depends on axle distance. The axle distance is between the front and rear wheels.

Straight aluminum ramps

4000 kg load per set

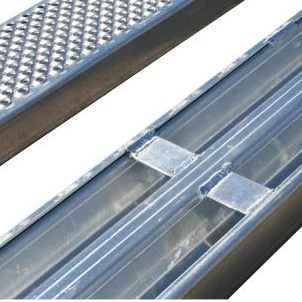

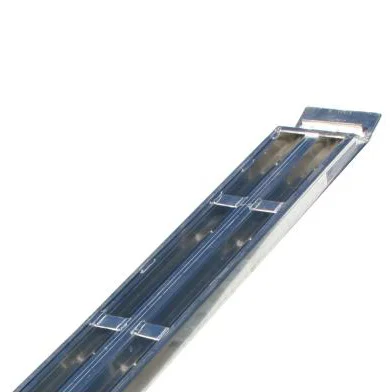

The access ramps are equipped with a reinforced contact surface

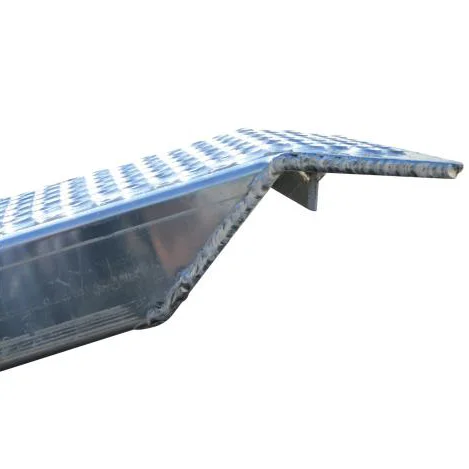

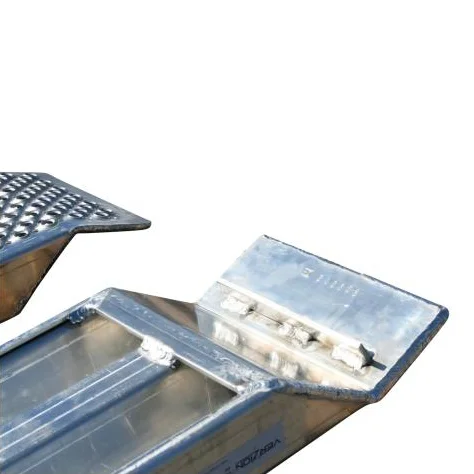

The access ramps should be fitted with angle brackets

Approved approach height depends on the dimensions of the ramp set (More information under approach height)

  • Many application possibilities
  • Low self-weight
  • Non-slip surface
  • Easy to clean
  • Tested for a load of 4000 kg per set
  • Sold in sets of 2 pieces

Our product range ranges from ramps suitable for small vehicles to the very heavy ones.

4000kg Ramp pair (2500mm x 260mm)

Suitable for machinery, vehicles and equipment

Load depends on axle distance. The axle distance is between the front and rear wheels.

Load applies to 2-axle vehicle and 1 set of ramps.
Distribution of weight with a maximum of 2/3 on one axle. The axle with the highest load must always be at the top of the ramp when driving up and down.
REMEMBER to include the weight of the driver, fuel, equipment etc
Ramps must NEVER be used as a bridge/plank, i.e. without an approach angle

For load/drive-up, please see specifications.



Safety measures:

  • Always wear gloves when handling the ramps
  • Only use the ramps on stable and firm ground
  • Persons other than the user must keep an appropriate distance during use
  • Driving up and down the ramps may only be done under the supervision of another person.
  • Never use the ramps if there is visible damage
  • The ramps must rest on the trailer with the entire installation surface
  • The ramps must be attached to the trailer with bolts or similar.
  • Maximum permitted wheel width is ramp width minus 20 mm

Additional information

Brand

Load / Wheelbase >1200 mm

4000kg

Load / Wheelbase 750-1200 mm

3200kg

Load / Wheelbase 500-750 mm

2800kg

Max Load (Per Pair)

4000kg

Max Loading/Driving Height

72cm

Single Ramp Dimensions

2500 x 260 x 75mm
